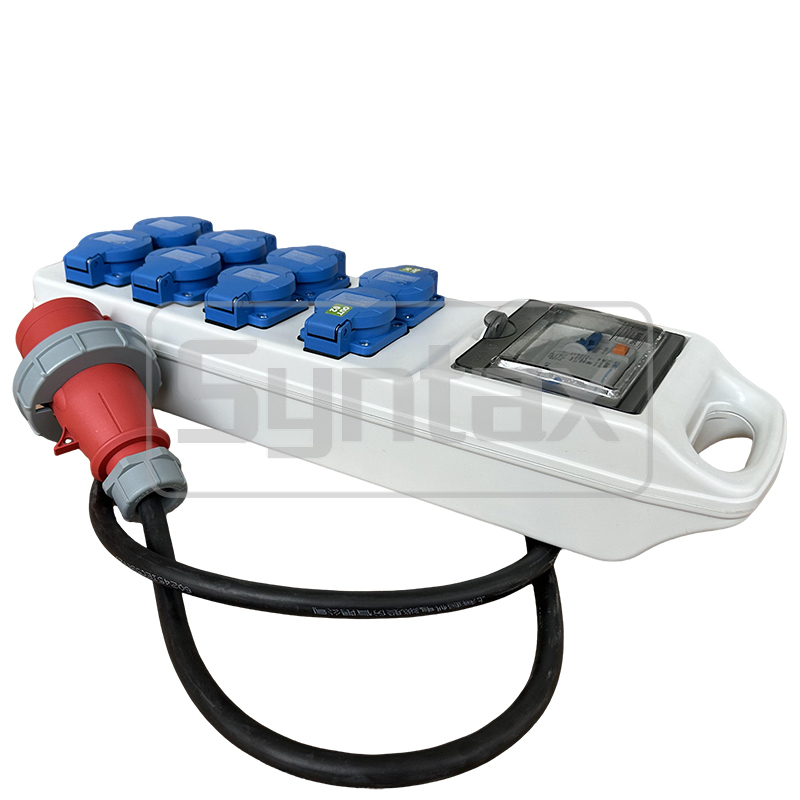

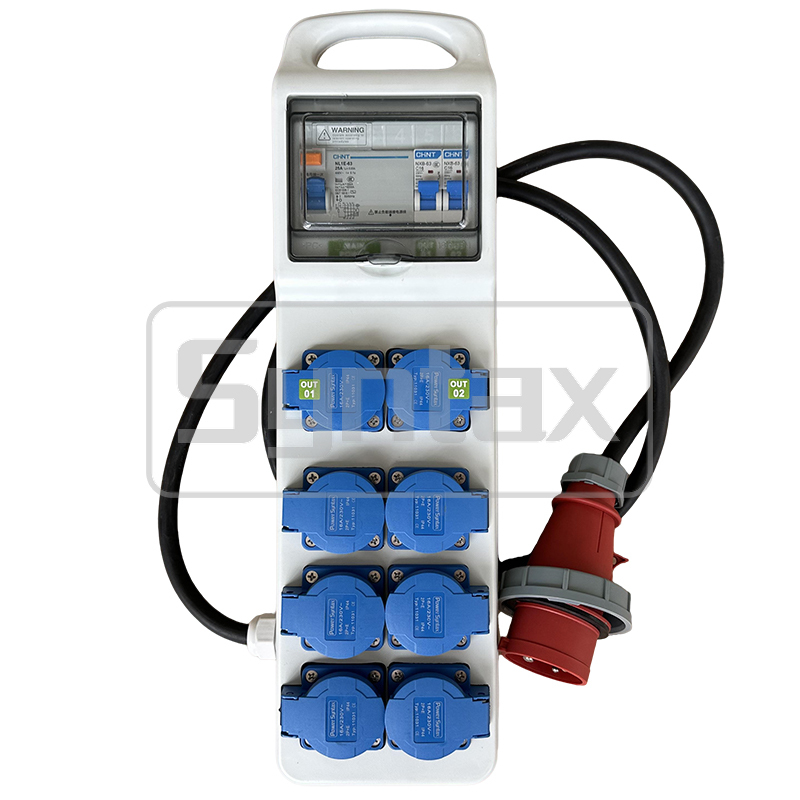

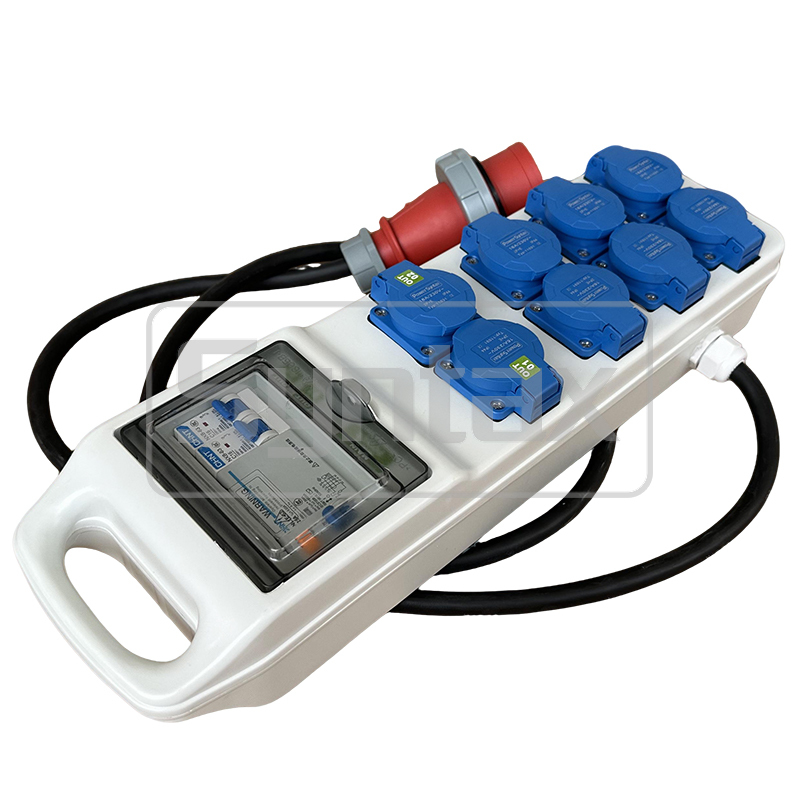

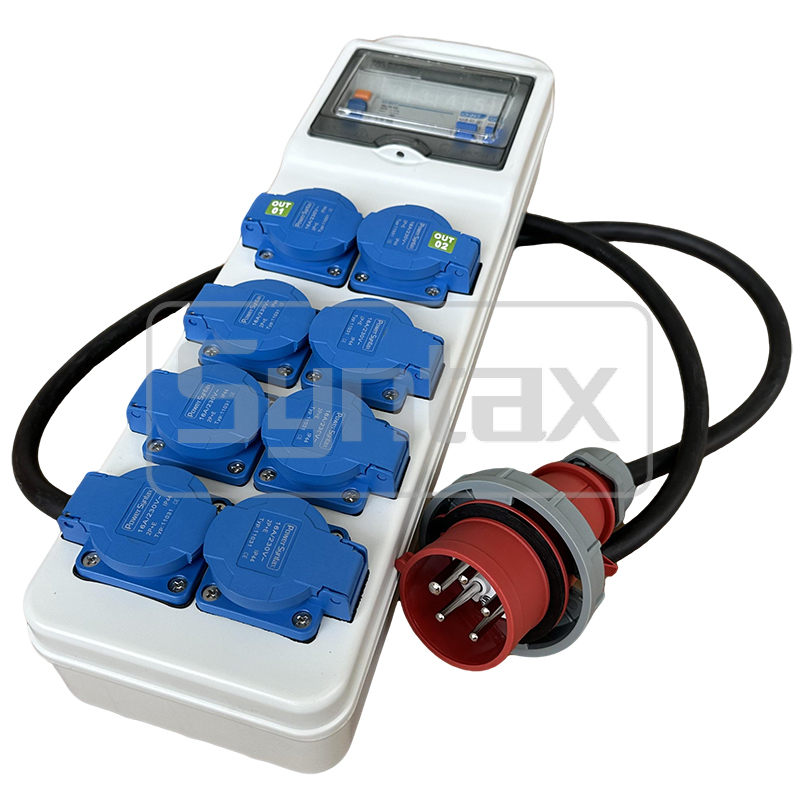

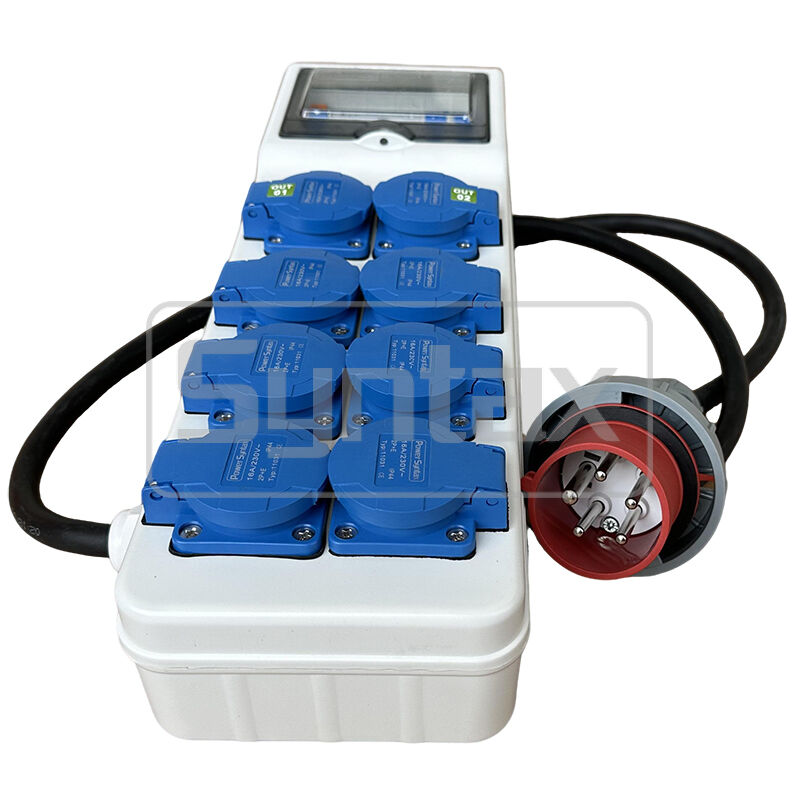

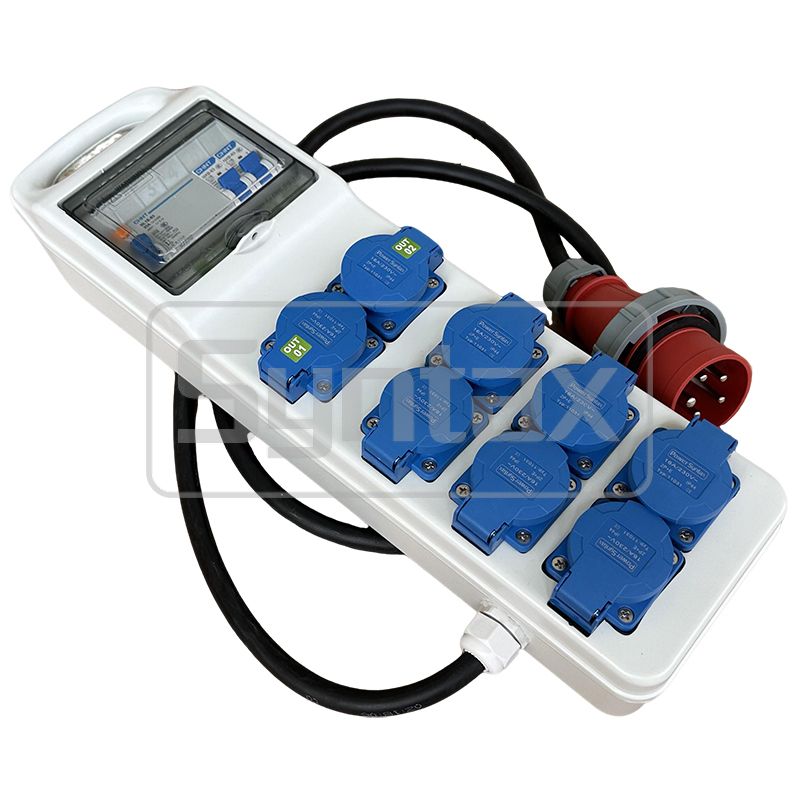

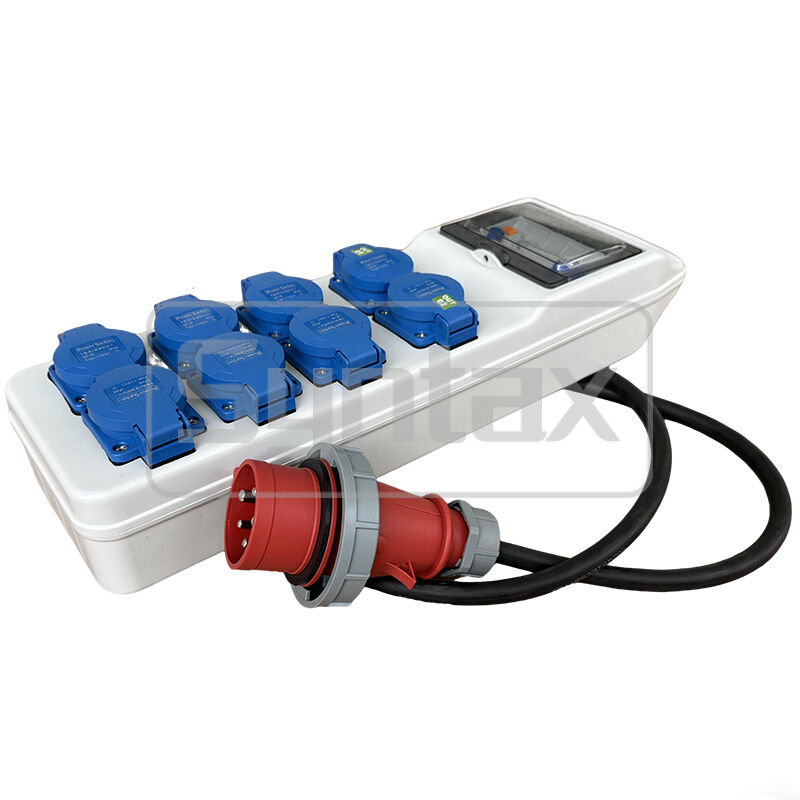

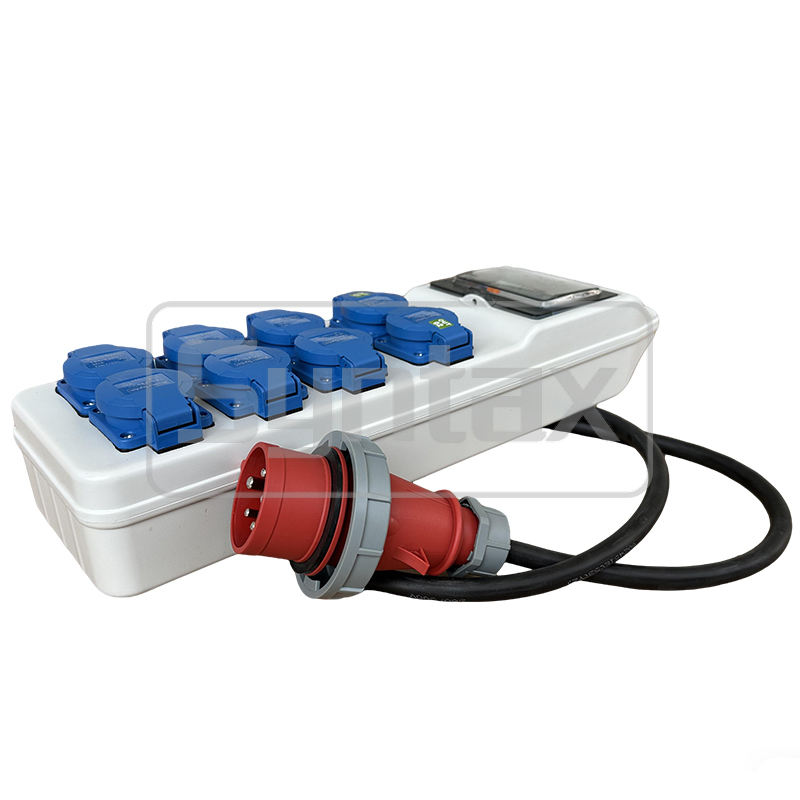

Syntax CT3 16AMP Three Phase Socket Power Splitter Lead IP44 Waterproof With 8 Schuko Sockets 490*142*95mm

Syntax CT3 16AMP Three Phase Socket Power Splitter Lead IP44 Waterproof With 8 Schuko Sockets 490*142*95mm

Technical Parameters:

Drawing:

Dimension Drawing of Empty Box:

Features and Benefits:

• Design based on EN 60309, IEC 60529.

• Waterproof and Shockproof design, IP rating up to IP67.

• Color: Black, Yellow or Grey.

• Material: PC (Polycarbonate Resin, the best material of plastic).

• Operating Temperature:-20℃～+75℃.

• Dimension: 490mm*142mm*95mm.

THE ADVANTAGES OF OUR DISTRIBUTION BOXES:

• Quick assembly/dismantling

• Safe connections

• Re-usability of all components

• Robust distributor

• Easy handling of distribution boxes and of the entire system

Specification:

The CT3 Power Distro Box 16AMP Three Phase is made from tough plastic - PC, with a 1.8 meter power lead cable 5*2.5mm2, easily getting the power supply from far distance. It gives 1 nos 16A/5P 400v IP67 socket without protection and 4 nos 2P+E 16A Schuko Sockets with the protection of MCBs, allowing multiple applications to be connected at anytime plus the box has a very useful carry handle allowing the splitter to be easily moved around the site. You can hang it in the air as a floating socket box, or lie down just like a home use extension sockets. The main switch is 4P 25A 30mA RCD. It has a IP44 rating to ensure users are kept safe in dusty and rainy environments plus it is supplied with a tough rubber cable to ensure maximum electrical safety.

The box is compact size includes portable easy-to-carry top handle.

Plug these portable distribution boxes into a power source, such as a generator, to power equipment when electricity is not available. All have breakers’ protection to minimize the risk of electric shock. They're also known as spider boxes.

The design of the polycarbonate plastic distribution box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.

OEM and ODM services are available.

Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.

Applications:

Connectors for every task

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.

• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.

• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.

• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.

• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.

• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.

• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
